Bringing The Best In RFID Antenna Products And Applications
Category

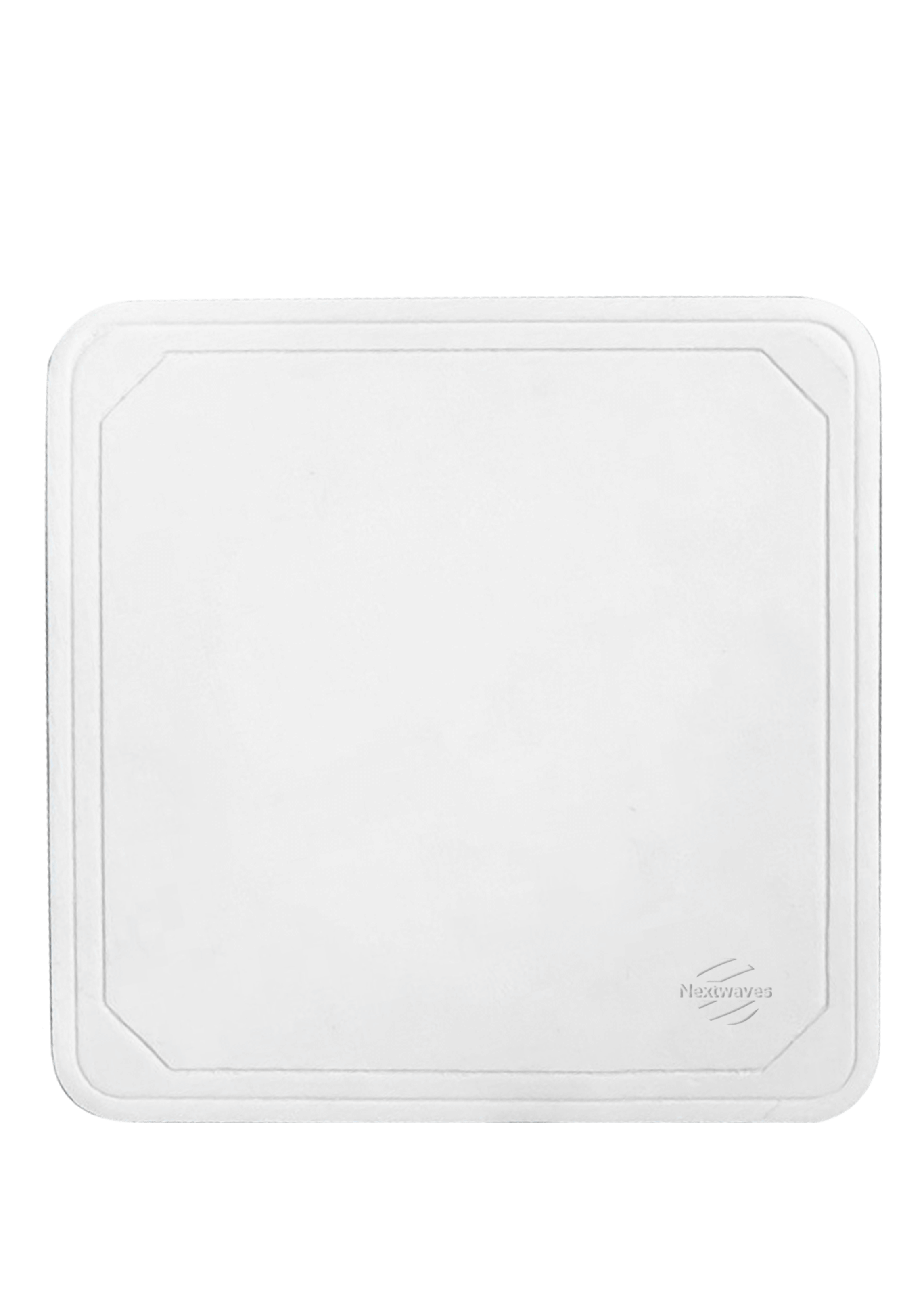

Standard RFID Antenna
Frequency Range:0.9-0.93 (GHz)
VSWR:≤ 1.25
Axial Ratio:< 3 dB
Front to Back Ratio:> 15 dB
Standard RFID Antenna
Frequency Range0.9-0.93 (GHz)
VSWR≤ 1.25
Axial Ratio< 3 dB
Front to Back Ratio> 15 dB
Gain9 dBic
Power max10 W
PolarizationRHCP
Dimensions254x254x24mm
...

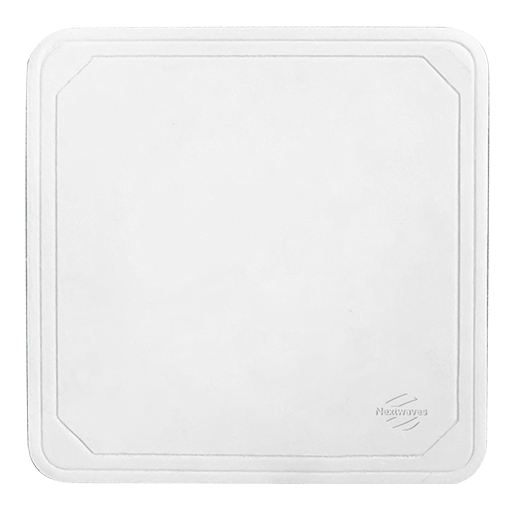

Wideband RFID Antenna
Frequency Range:0.86-0.94 GHz
VSWR:≤ 1.1
Axial Ratio:< 3 dB
Front to Back Ratio:> 10 dB
Wideband RFID Antenna
Frequency Range0.86-0.94 GHz
VSWR≤ 1.1
Axial Ratio< 3 dB
Front to Back Ratio> 10 dB
Gain9 dBic
Power max10 W
PolarizationLHCP
Dimensions254x254x33.7mm
...

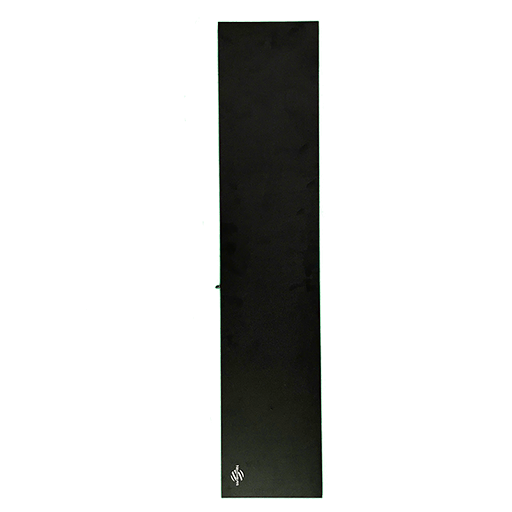

RFID UltraSlim CP12025
Frequency Range:0.9-0.93 GHz
VSWR:≤ 1.2
Axial Ratio:1.5 (Typ.) (dB)
Max Gain:14.8 dBic
RFID UltraSlim CP12025
Frequency Range0.9-0.93 GHz
VSWR≤ 1.2
Axial Ratio1.5 (Typ.) (dB)
Max Gain14.8 dBic
Power max10 W
PolarizationLHCP/RHCP
Dimensions 1218x258x12.5 mm
ConnectorSMA Female
...

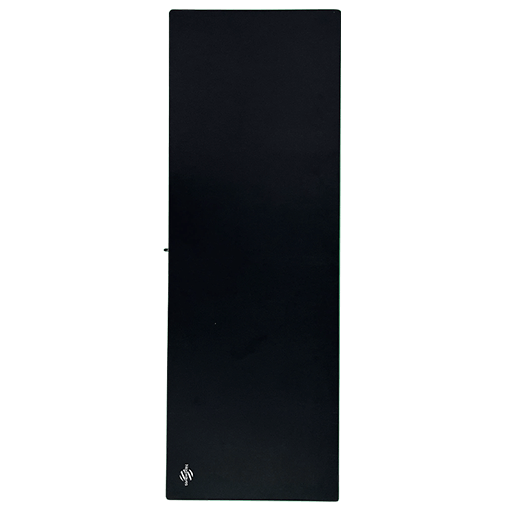

RFID UltraSlim LP12040
Frequency Range:0.9-0.93 GHz
VSWR:≤ 2
Gain, Typ:17 dBic
Power Max:10 W
RFID UltraSlim LP12040
Frequency Range0.9-0.93 GHz
VSWR≤ 2
Gain, Typ17 dBic
Power Max10 W
PolarizationLinear
Dimensions1218x428x12.5 mm
ConnectorSMA Female
CoverABS

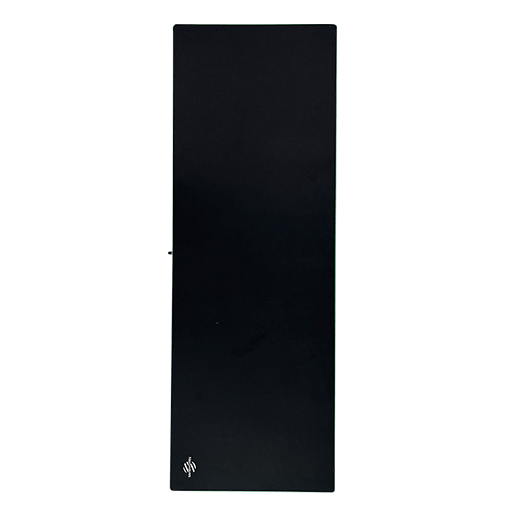

RFID UltraSlim CP12048
Frequency Range:0.9-0.93 GHz
VSWR:≤ 1.5
Axial Ratio:1.5 (Typ.) (dB)
Max Gain:17 dBic
RFID UltraSlim CP12048
Frequency Range0.9-0.93 GHz
VSWR≤ 1.5
Axial Ratio1.5 (Typ.) (dB)
Max Gain17 dBic
Power max10 W
PolarizationLHCP/RHCP
Dimensions 1218x488x12.5 mm
ConnectorSMA Female
...

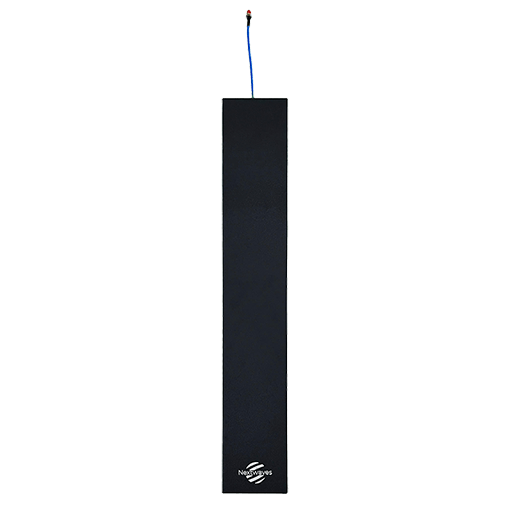

RFID UltraSlim LP6012
Frequency Range:0.9-0.93 GHz
VSWR:≤ 1.7
Gain, Typ:10 dBic
Power Max:10 W
RFID UltraSlim LP6012
Frequency Range0.9-0.93 GHz
VSWR≤ 1.7
Gain, Typ10 dBic
Power Max10 W
PolarizationLinear
Dimensions600x120x12.5 mm
ConnectorSMA Female
CoverABS

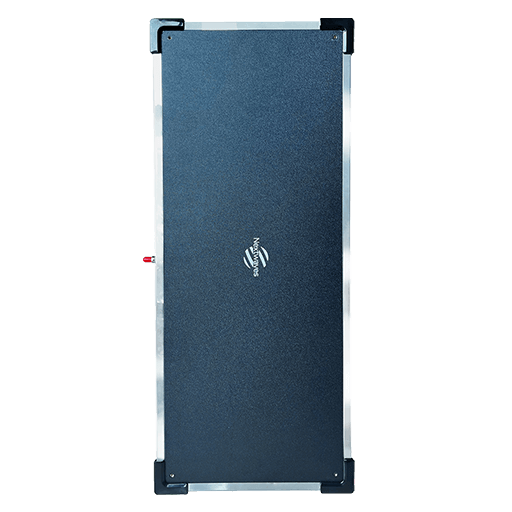

RFID UltraSlim CP6025
Frequency Range:0.9-0.93 GHz
VSWR:≤ 1.4
Axial Ratio:1.5 dB
Gain:12 dBic
RFID UltraSlim CP6025
Frequency Range0.9-0.93 GHz
VSWR≤ 1.4
Axial Ratio1.5 dB
Gain12 dBic
Power max10 W
PolarizationCircular
Dimensions 600x250x11.5 mm
ConnectorSMA Female
...

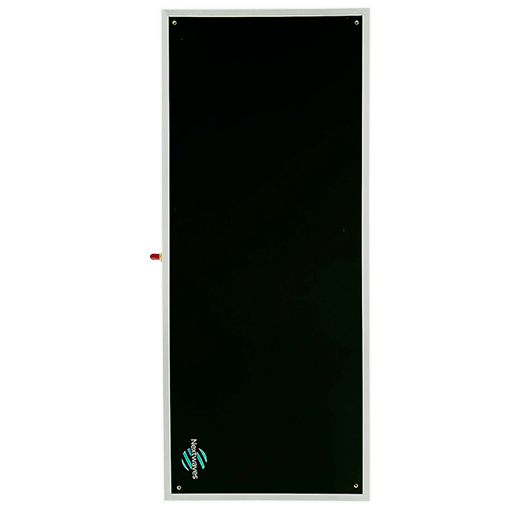

RFID UltraSlim CP6226
Frequency Range:0.9-0.93 GHz
VSWR:≤ 1.4
Axial Ratio:1.5 dB
Gain:12 dBic
RFID UltraSlim CP6226
Frequency Range0.9-0.93 GHz
VSWR≤ 1.4
Axial Ratio1.5 dB
Gain12 dBic
Power max10 W
PolarizationRHCP
Dimensions620x260x13 mm
ConnectorSMA Female
...
RFID UltraSlim CP6226
Frequency Range:0.9-0.93 GHz
VSWR:≤ 1.4
Axial Ratio:1.5 dB
Gain:12 dBic
RFID UltraSlim CP6226
Frequency Range0.9-0.93 GHz
VSWR≤ 1.4
Axial Ratio1.5 dB
Gain12 dBic
Power max10 W
PolarizationRHCP
Dimensions620x260x11 mm
ConnectorSMA Female
...

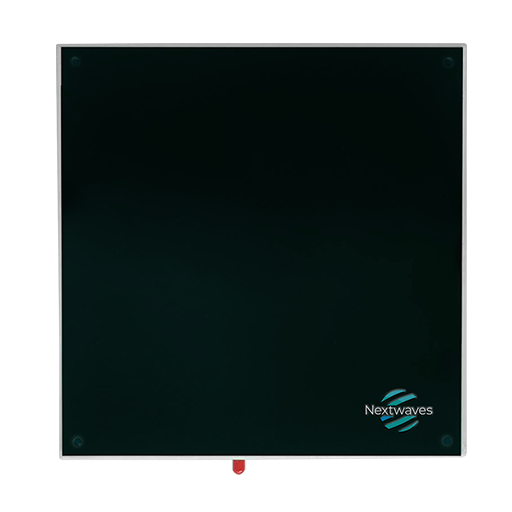

RFID UltraSlim CP2525
Frequency Range:0.9-0.93 GHz
VSWR:≤ 1.15
Axial Ratio:1.5 dB
Gain:9 dBic
RFID UltraSlim CP2525
Frequency Range0.9-0.93 GHz
VSWR≤ 1.15
Axial Ratio1.5 dB
Gain9 dBic
Power max10 W
PolarizationRHCP
Dimensions258x258x14.5 mm
ConnectorSMA Female
...
RFID UltraSlim CP2525
Frequency Range:0.9-0.93 GHz
VSWR:≤ 1.25
Axial Ratio:2 dB
Gain:9 dBic
RFID UltraSlim CP2525
Frequency Range0.9-0.93 GHz
VSWR≤ 1.25
Axial Ratio2 dB
Gain9 dBic
Power max10 W
PolarizationRHCP
Dimensions 258x258x14.5 mm
ConnectorSMA Female
...
RFID UltraSlim CP6060
Frequency Range:0.9-0.93 GHz
VSWR:≤ 1.7
Axial Ratio (Typ.):1.5 dB
Gain, Typ:15 dBic
RFID UltraSlim CP6060
Frequency Range0.9-0.93 GHz
VSWR≤ 1.7
Axial Ratio (Typ.)1.5 dB
Gain, Typ15 dBic
Power max10 W
PolarizationLHCP/RHCP
Dimensions608x608x12.5 mm
ConnectorSMA Female
...

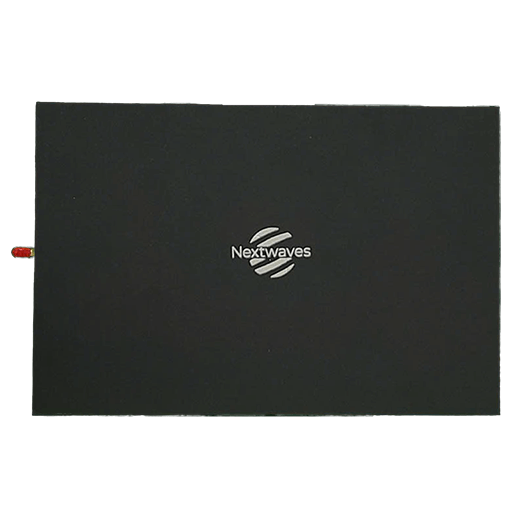

RFID UltraSlim Near Field A3020
Frequency Range:0.86-0.96 GHz
VSWR:< 1.3:1 full band
Peak Gain:-2 dB
Power max:2 (33 dBm)
RFID UltraSlim Near Field A3020
Frequency Range0.86-0.96 GHz
VSWR< 1.3:1 full band
Peak Gain-2 dB
Power max2 (33 dBm)
Dimensions300x200x12 mm
ConnectorSMA Female
CoverABS

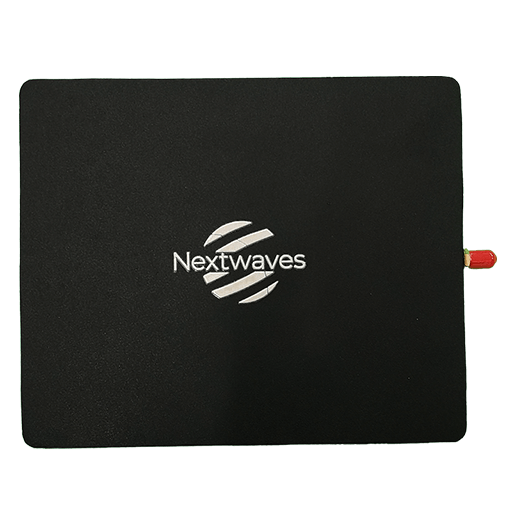

RFID-Bookshelf Antenna
Frequency Range:0.89-0.94 GHz
VSWR:≤ 1.25
Axial Ratio:< 3 dB
Front to Back Ratio :> 10 dB
RFID-Bookshelf Antenna
Frequency Range0.89-0.94 GHz
VSWR≤ 1.25
Axial Ratio< 3 dB
Front to Back Ratio > 10 dB
Gain3 dBic
Power max10 W
PolarizationLHCP/RHCP
Dimensions168x140x9 mm
...

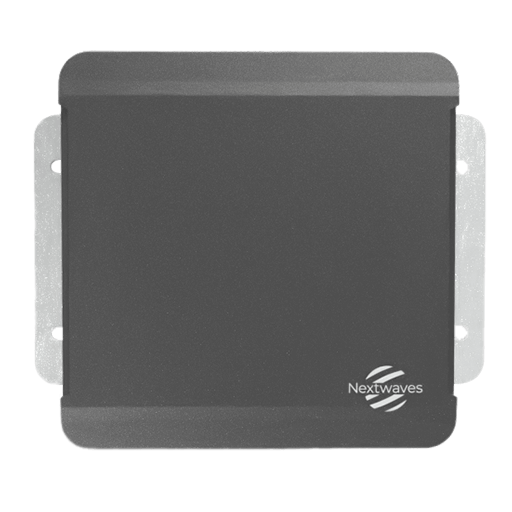

RFID Reader 01
Operating Frequency :866 - 868Mhz EU
902 - 928Mhz FCC
Working Protoco:EPC Class 1 iGen 2(ISO18000-6C)
Power :5 VDC via USB Type C (900mA)
RF Output Power:Consumption: 3.5W max.
Max 26 dBm, configurable (@1dBm per step)
RFID Reader 01
Operating Frequency 866 - 868Mhz EU
902 - 928Mhz FCC
Working ProtocoEPC Class 1 iGen 2(ISO18000-6C)
Power 5 VDC via USB Type C (900mA)
RF Output PowerConsumption: 3.5W max.
Max 26 dBm, configurable (@1dBm per step)
Gain4dBi, circular polarization
Reading Distance0 - 50cm (depends on tag as well)
LED IndicatorStatic LED: Power
Blinking LED: Tag Detection
Working Temperature-20°C - 60°C
...

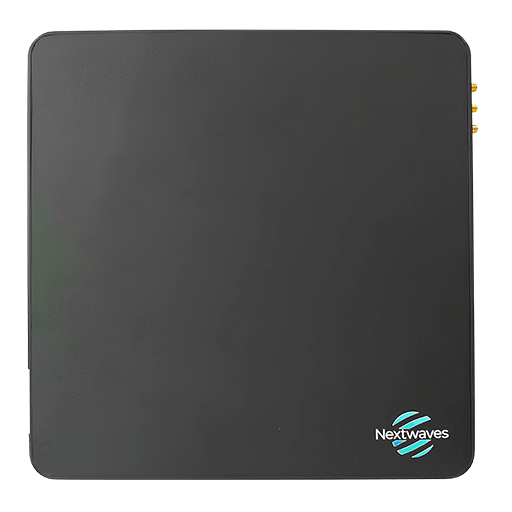

RFID Reader 04
Operating Frequency :866 - 868Mhz EU
902 - 928Mhz FCC
Working Protoco:EPC Class 1 iGen 2(ISO18000-6C)
Power :12 VDC, Consumption: 3.5W max
RF Output Power:Max 33 dBm,
configurable (@1dBm per step)
RFID Reader 04
Operating Frequency 866 - 868Mhz EU
902 - 928Mhz FCC
Working ProtocoEPC Class 1 iGen 2(ISO18000-6C)
Power 12 VDC, Consumption: 3.5W max
RF Output PowerMax 33 dBm,
configurable (@1dBm per step)
Gain8dBi, circular polarization
Reading Distance0 - 3m (depends on tag as well)
LED IndicatorStatic LED: Power
Blinking LED: Tag Detection
Working Temperature-20°C - 60°C
...
RFID Reader 02
Operating Frequency :866 - 868Mhz EU
902 - 928Mhz FCC
Working Protoco:EPC Class 1 iGen 2(ISO18000-6C)
Power :12 VDC, Consumption: 3.5W max
RF Output Power:Max 33 dBm,
configurable (@1dBm per step)
RFID Reader 02
Operating Frequency 866 - 868Mhz EU
902 - 928Mhz FCC
Working ProtocoEPC Class 1 iGen 2(ISO18000-6C)
Power 12 VDC, Consumption: 3.5W max
RF Output PowerMax 33 dBm,
configurable (@1dBm per step)
GainNearfield UHF
Reading DistanceUp to 50cm (depends on tag as well)
LED IndicatorStatic LED: Power
Blinking LED: Tag Detection
Working Temperature-20°C - 60°C
...

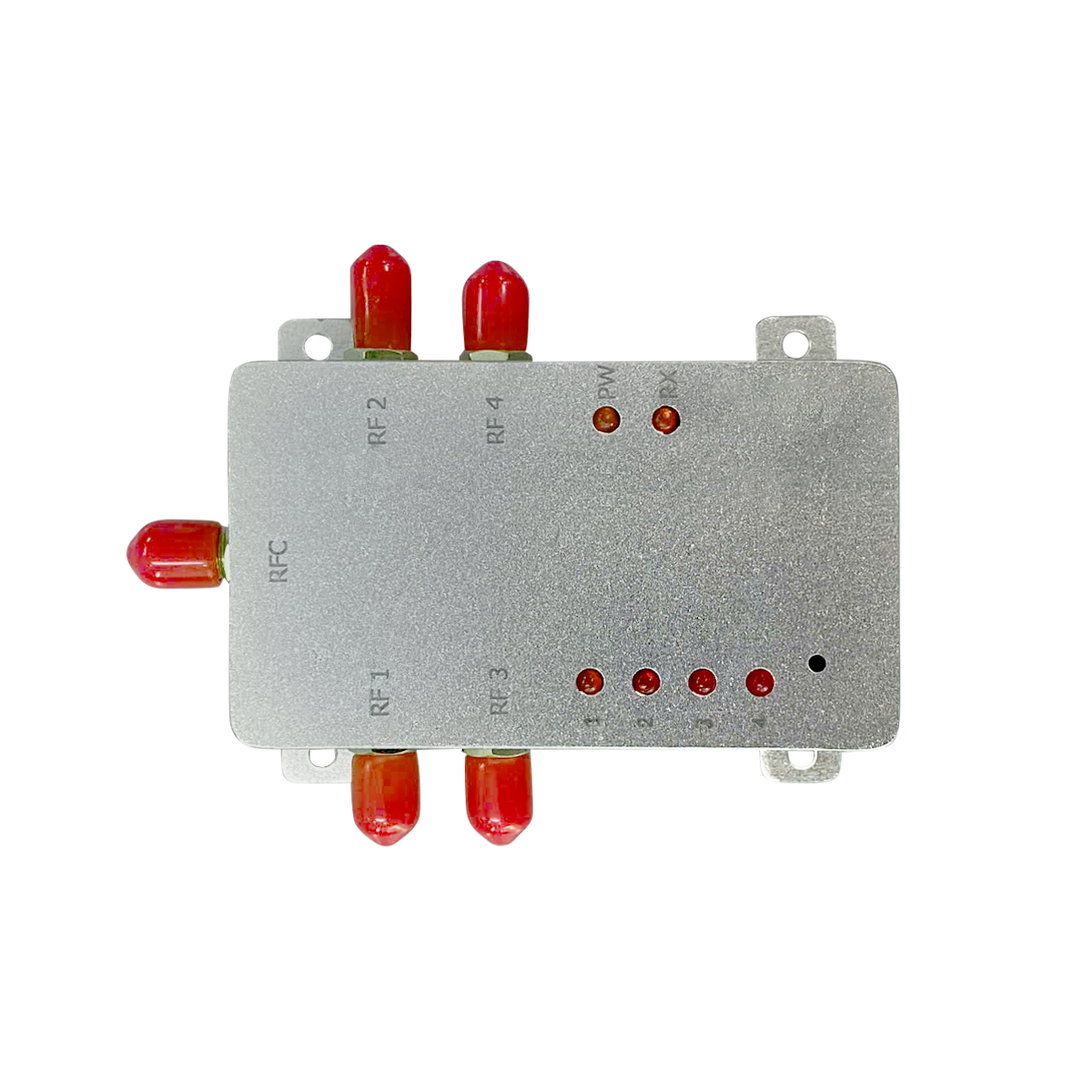

RF SWITCH
Operating Frequency :50 - 3000 MHZ
Insertion Loss:15 (dB)
Isolation:≤1.25
Switching Time:1.5 (ms, typ.)
RF SWITCH
Operating Frequency 50 - 3000 MHZ
Insertion Loss15 (dB)
Isolation≤1.25
Switching Time1.5 (ms, typ.)
0.1 dB Compression (dBm)Circular
Dimensions [WxLxH]57.7x75.6x15.5 (mm)
CoverAluminum

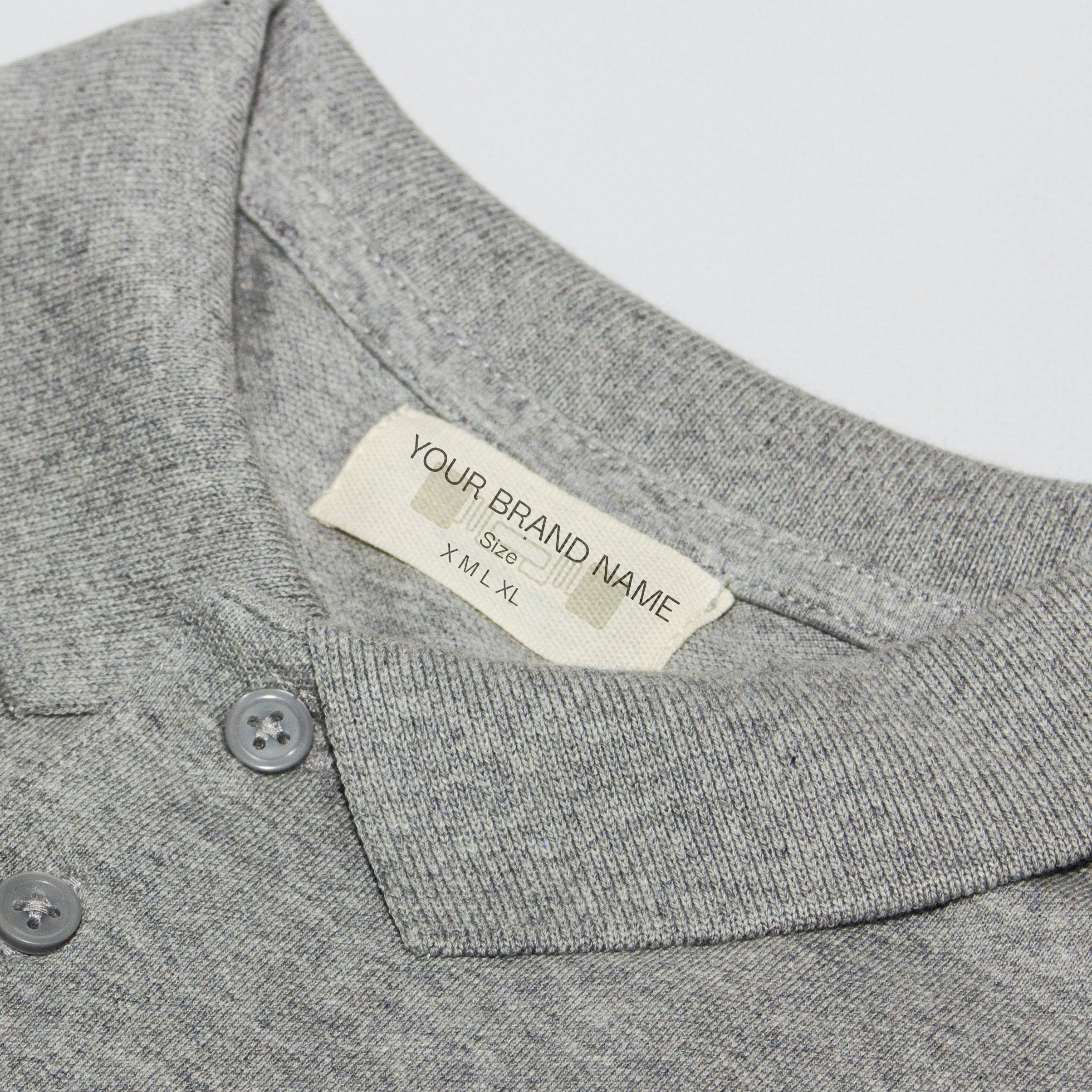

RFID WOVEN LABEL
Surface Material:• 200g Art Paper/ Coated Paper• 250g Art Paper/ Coated Paper• 200g White Card Paper• More customized materials.
Standard size:63x40 mm, 83x25 mm, 87x42 mm
Other Customized Services:• Customized surface printing: color, varnish, and protective film covering.• Variable data printing and encoding.• Special-shaped die cutting, punching, and dot-line die cutting.
RFID WOVEN LABEL
Surface Material• 200g Art Paper/ Coated Paper• 250g Art Paper/ Coated Paper• 200g White Card Paper• More customized materials.
Standard size63x40 mm, 83x25 mm, 87x42 mm
Other Customized Services• Customized surface printing: color, varnish, and protective film covering.• Variable data printing and encoding.• Special-shaped die cutting, punching, and dot-line die cutting.

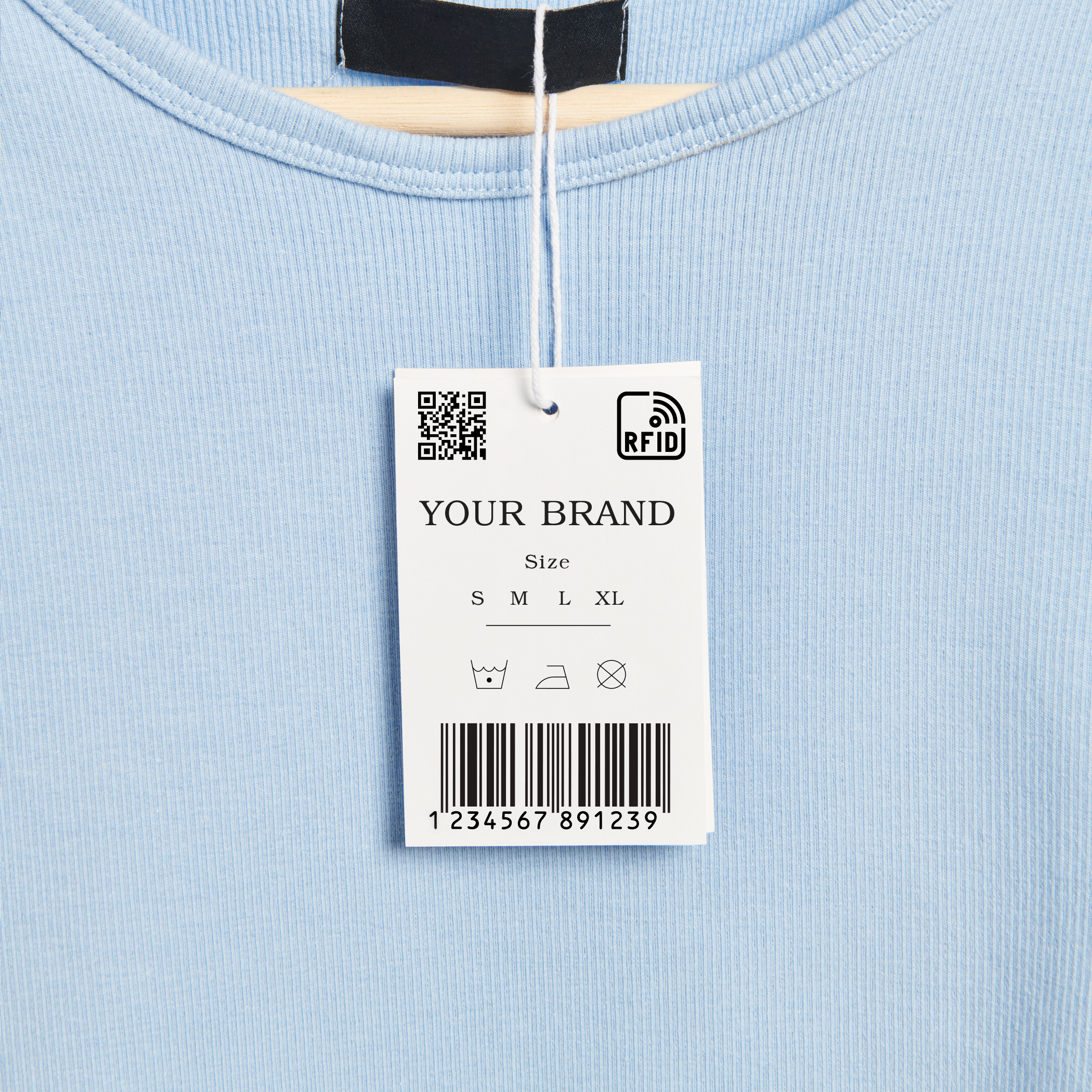

RFID HANGTAG
Surface Material:• Coated Nylon Tape• Polyester Ribbon• More customized materials.
Packing:• Shipped in rolls• Shipped in single pieces
Other Customized Services:• Color/monochrome printing.• Customized size design.• Variable data printing and encoding.
RFID HANGTAG
Surface Material• Coated Nylon Tape• Polyester Ribbon• More customized materials.
Packing• Shipped in rolls• Shipped in single pieces
Other Customized Services• Color/monochrome printing.• Customized size design.• Variable data printing and encoding.

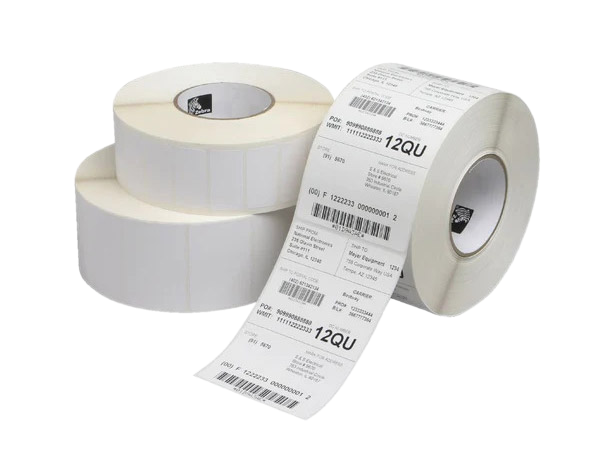

RFID SELF - ADHESIVE LABEL AND RFID STICKER LABEL
Material selection:• RFID Chip• RFID Antenna• Surface Materials for RFID labels• Release liner for RFID labels• Glue/Adhesives for RFID labels
RFID SELF - ADHESIVE LABEL AND RFID STICKER LABEL
Material selection• RFID Chip• RFID Antenna• Surface Materials for RFID labels• Release liner for RFID labels• Glue/Adhesives for RFID labels
