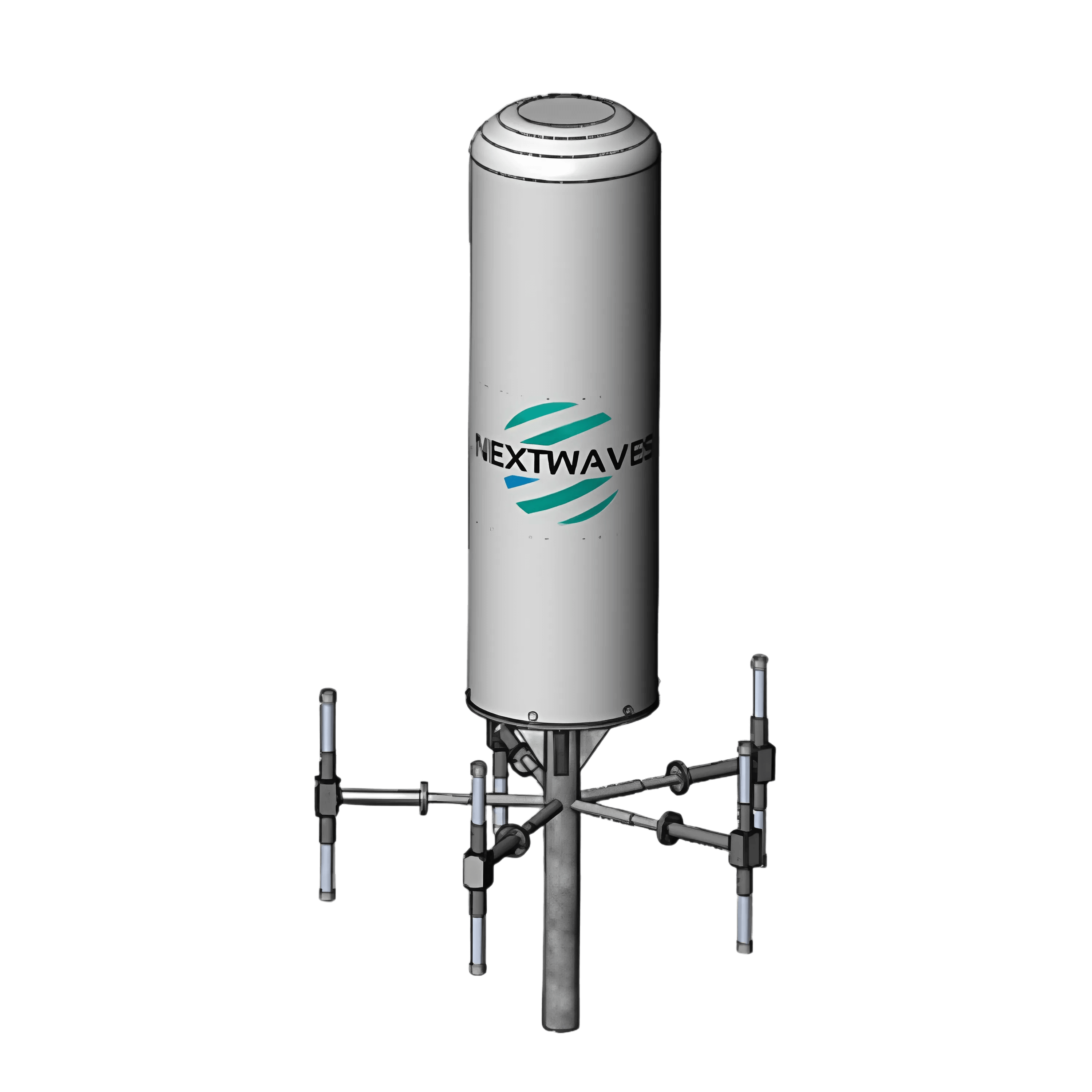

DF frequency range band 1:300 - 1000 MHz

DF frequency range band 2:1000 - 3000 MHz

Reference antenna:30 - 6000 MHz

Nominal input impedance:50

DF frequency range band 1300 - 1000 MHz

DF frequency range band 21000 - 3000 MHz

Reference antenna30 - 6000 MHz

Nominal input impedance50

Antenna typee-element DF interferometer optimised for 2-channel receiver or 5-channel receiver

PolarisationVertical

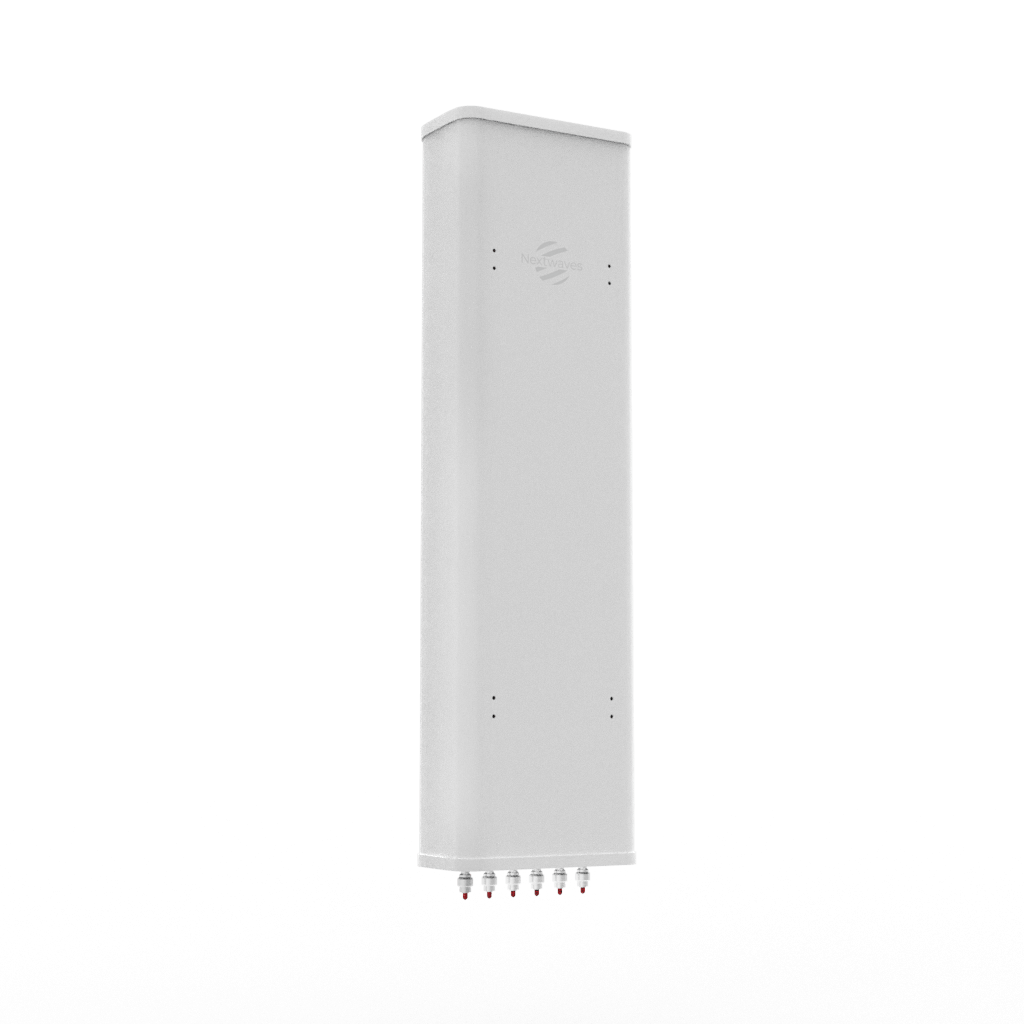

Frequency:1710 - 2690 MHz

Antenna gain:16.2 - 16.8 dBi

Polarization:Dual, ± 45 °

Electrical downtilt:0° - 10 °

Frequency1710 - 2690 MHz

Antenna gain16.2 - 16.8 dBi

PolarizationDual, ± 45 °

Electrical downtilt0° - 10 °

Horizontal beamwidth65° ± 5.0 °

Vertical beamwidth6.4° ± 1.0°

Frequency:98 - 960 MHz

Antenna gain:13.2 - 13.8 dBi

Polarization:Dual, ± 45°

Electrical downtilt:0° - 10 °

Frequency98 - 960 MHz

Antenna gain13.2 - 13.8 dBi

PolarizationDual, ± 45°

Electrical downtilt0° - 10 °

Horizontal beamwidth67° ± 4.0 °

Vertical beamwidth15° ± 2.5°
